Remove drive belt
CAUTION:
Spring preload.
Injury hazard!
Injury hazard!
- The use of the specified special tool (tool) is mandatory.
- Carry out the described steps properly.

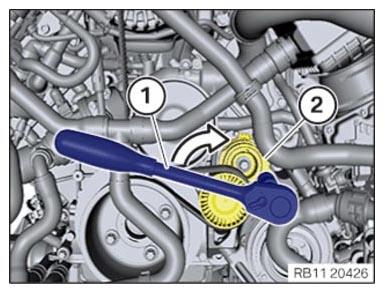

- Release the belt tensioner (2) clockwise with a suitable socket wrench (1).

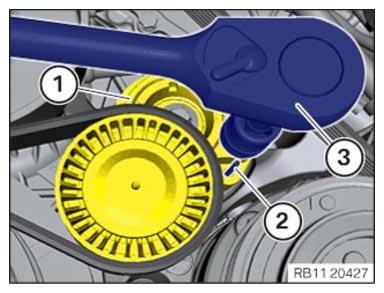

- Maintain the preload of the belt tensioner (1) using a suitable socket wrench (3).
- Secure the belt tensioner (1) against turning with the special tool 0 496 268 (11 0 390)
(2).

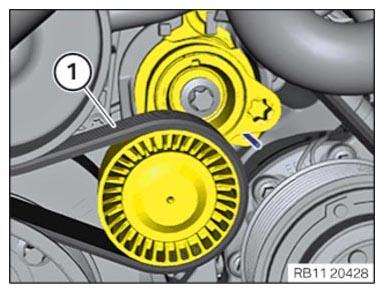

- Remove belt (1).
