Attaching coolant hoses to front subframe

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

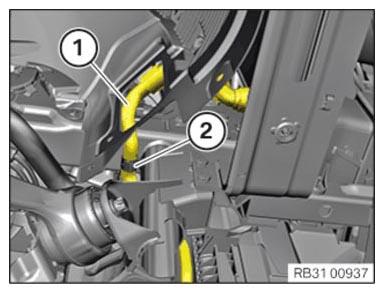

Secure the coolant hose (1) at the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

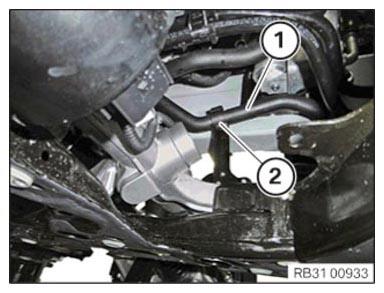

Fasten the coolant hose (1) to the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

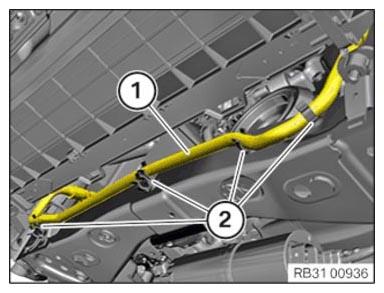

Fasten the coolant hose (1) onto the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
