Remove oil pump
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
RISK OF DAMAGE
Engine damage caused by excessively filling the engine with motor oil.
Filling an excessive quantity of motor oil may cause engine damage.
Engine damage caused by excessively filling the engine with motor oil.
Filling an excessive quantity of motor oil may cause engine damage.
- Observe the exact motor oil filling capacity.
- Allow engine oil to drip off when draining.
NOTE:
TECHNICAL INFORMATION
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).
Make sure the vehicle is operating temperature for engine oil service (engine oil temperature > 70°C).
Preliminary work
- Refer to RELEASING THE OIL DRAIN PLUG .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING LOWER OIL PAN SECTION .
- Loosen screws (1).
If necessary, the engine on the central bolt must be rotated clockwise to guarantee accessibility of the bolts (1).

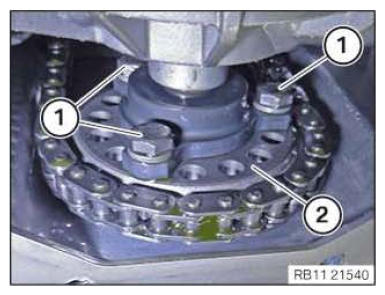

- Remove the sprocket wheel (2).
- Protect the oil pump (3) from falling.

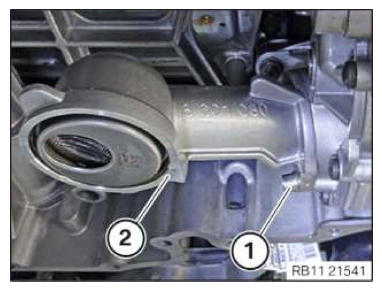

- Loosen nuts (2).
- Loosen screw (1).

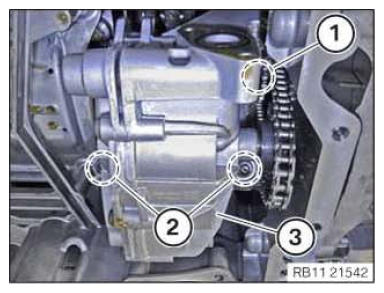

- Remove oil pump (3).
