Install electric wastegate valve actuator

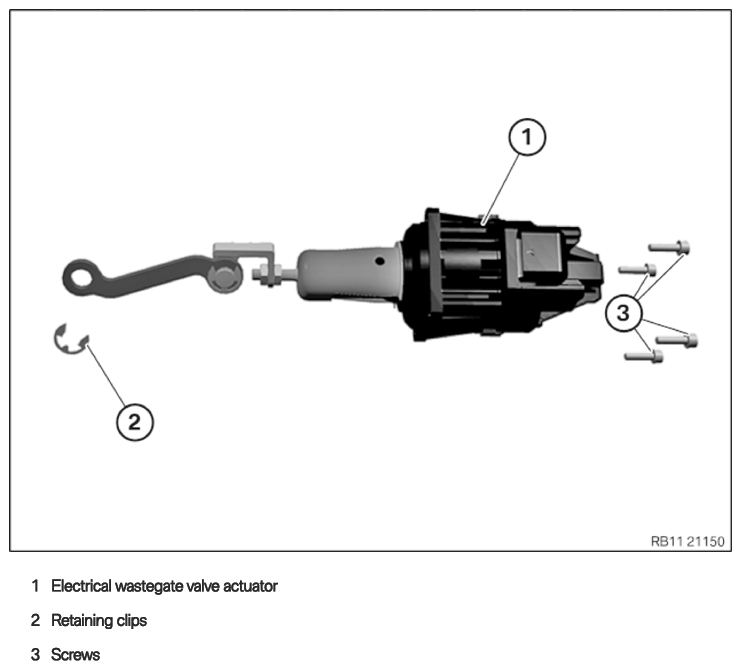

Repair kit for the electrical wastegate valve controller

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the electrical controller drive and the mechanical connection.
Improper handling of the electrical controller drive can lead to malfunctions or failure of the electrical controller drive.

Do not release the screw connection between the wastegate linkage and the control rod on the wastegate valve controller and do not twist it.
Avoid exposure of lateral forces to the control rod of the electrical controller drive.
Remove all the screws on the electrical controller drive before the control rod on the wastegate linkage is detached.

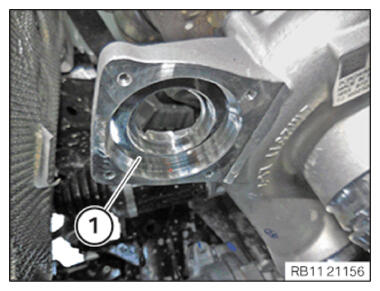

Check the supporting surface (1) on the turbocharger for contamination and clean if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

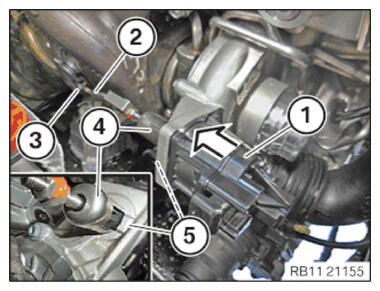

Feed the electrical wastegate valve controller (1) in the arrow direction into the bore of the compressor housing (5) and position it.
Ensure that the heat shield (4) is correctly positioned at the compressor housing (5).
Mount the control rod (2) of the electric wastegate valve controller (1)carefully on the lever of the wastegate valve (3).
In the process, any effect of lateral force on the control rod (2) is to be avoided.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1).
Parts: Screws

The screws are included in the repair kit.

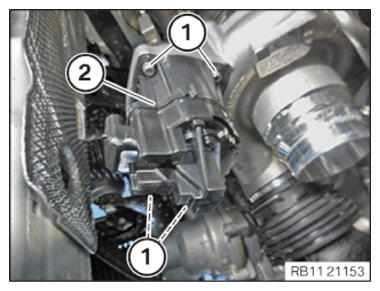

Hand-tighten the screws (1) at the electrical wastegate valve controller (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) crosswise on the electrical wastegate valve controller (2).

TIGHTENING TORQUE SPECIFICATIONS

Electrical controller drive to turbocharger
Replace screws.	Tighten screws crosswise. Tightening torque	3±0.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the retaining clip (1).
Parts: Retaining clip

The retaining clip is included in the repair kit.

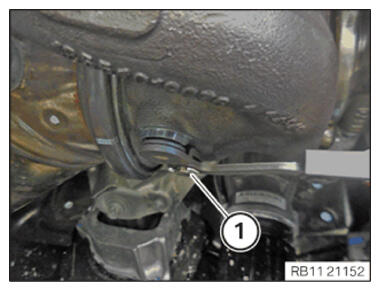

Mount the retaining clip (1).
Make sure the retaining clip (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

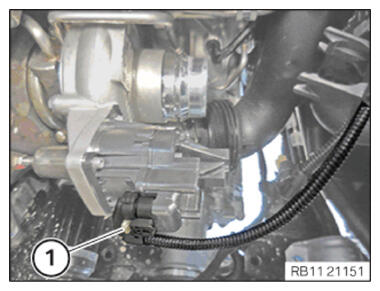

Connect connector (1) and lock.
Make sure the connector (1) engages audibly.
