Install front door trim panel

• Check if clips (1) are present and check them for damage.
• Damaged or missing clips (1) must be replaced.

  The clips (1) must not be engaged. The disengaged state is shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the door trim panel.
• Hook the Bowden cable (1) of the door opener on the door lock (3).
• Hook the Bowden cable (1) of the door opener on the counter support (2).
• Connect connectors (4) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the door trim panel (1) on the window channel strip.
• Clip in the door trim panel (1) onto the clips.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  door trim panel
  screw	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw.
  TIGHTENING TORQUES SPECIFICATION



  door trim panel
  screw	Tightening torque	5 Nm

• Mount the cover (1.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Not for G05 security vehicle:

  Tighten down screw (2)

  TIGHTENING TORQUES SPECIFICATION



  Door trim panel
  screw	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the cover (1).
• Tighten down screw.
  TIGHTENING TORQUES SPECIFICATION



  Door trim panel
  screw	Tightening torque	5 Nm

• Mount the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

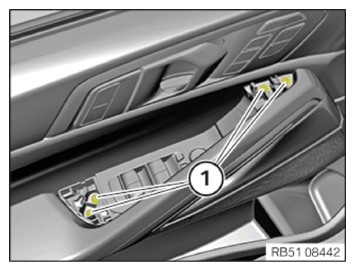

  Tightening screws on the handle (G06)

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Door trim panel
  screw	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

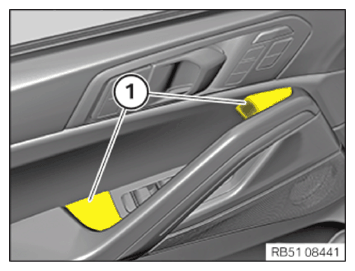

• Clip in the covers (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to MOUNTING THE MIRROR TRIANGLE COVER .
