Remove glove box lid

Preliminary work

• Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
• Refer to REMOVING RIGHT FOOTWELL TRIM .
• Refer to REMOVING GLOVE BOX LIGHT .
• Refer to REMOVING GLOVE COMPARTMENT .

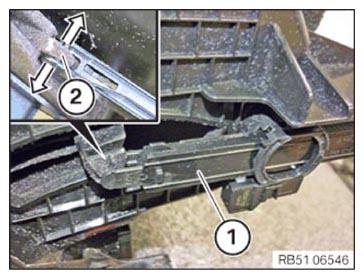

• Release damper (1) from angle bracket (2) (slightly splay in direction of arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

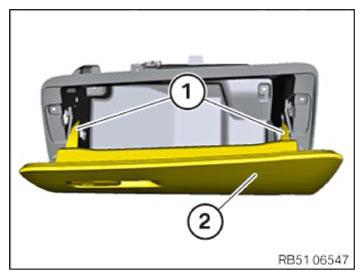

• Slightly press the retaining lugs (1) together and carefully feed out the glove box lid (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
