63 25 Brake Lights
>>
63 25 000 Removing/installing/replacing brake lamp
>>
Installing the brake light
Installing the brake light

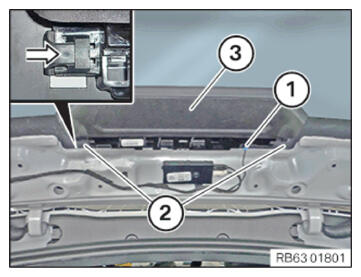

3. Position the brake light
(3)
.
Lock both slides
(2)
inward.
Connect plug
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
REMOVING THE TRIM FOR THE TOP REAR WINDOW FRAME
.
