Install positive battery cable
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE .
- Connect positive battery cable to the starter motor.
- Secure positive battery cable at the clamp (2).
- Tighten the nut (1).TIGHTENING TORQUE SPECIFICATIONS
Battery positive lead to starter M8 Tightening torque 15 Nm - Connect the connector (1) to the starter and lock.

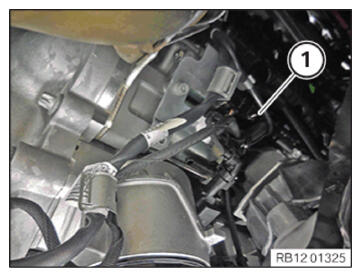

The connector (1) must engage audibly.

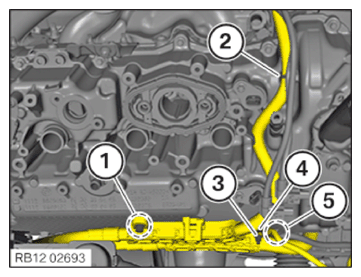

NOTE: To provide a better overview: Illustration of surrounding parts removed. - Fix the clip (2).
- Tighten down screw (4).TIGHTENING TORQUE SPECIFICATIONS
Hexagon screw M6 with threaded bolt M5 Screw M6 with threaded bolt M5 tightening torque 10 Nm - Position the grounding point (5).
- Tighten nut (3).TIGHTENING TORQUE SPECIFICATIONS

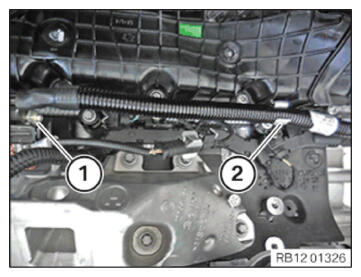

Ground cable on cylinder head cover/ground pin Nut M5 tightening torque 4.6 Nm - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Wiring harness to cylinder head cover M 6x16 screw tightening torque 10 Nm - Position the wiring harness (3).
- Fix wiring harness mountings (2).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Wiring harness to cylinder head cover M 6x16 screw tightening torque 10 Nm - Secure the wiring harness mounting (5).

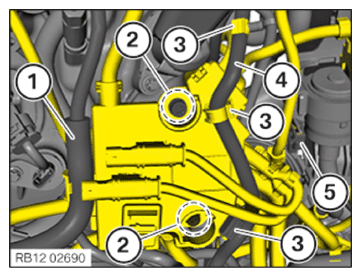

- Secure the wiring harness of the integrated power supply module (4) to fixtures (3).
- Tighten the screws (2).TIGHTENING TORQUE SPECIFICATIONS

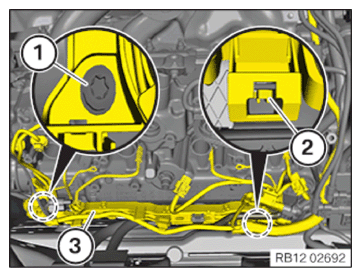

Wiring harness to cylinder head cover M 6x16 screw tightening torque 10 Nm - Clip in transmission wiring harness (1).
- Feed in and install positive battery cable.

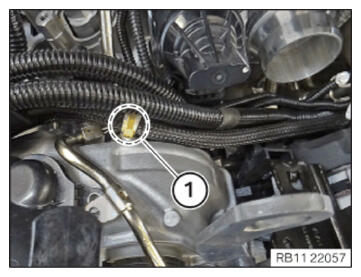

- Connect plug connection (3) and lock.

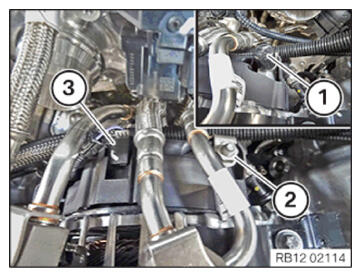

- Position the positive battery cable on the alternator.
- Tighten the nut (2).TIGHTENING TORQUE SPECIFICATIONS
Positive battery cable to alternator M8 tightening torque 19 Nm - Attach cover panel (1).
- Clip in the cable clip (1).

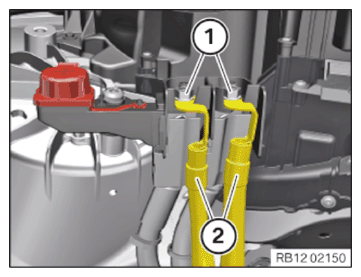

- Guide in and install the positive battery cables (2).

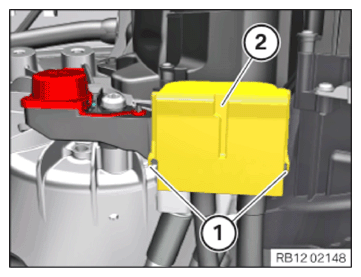

- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Auxiliary terminal for jump starting Flange nut M8 Tightening torque 15 Nm - Feed in the cover (2) downwards and install.
- Locks must lock audibly
Follow-up work
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to INSTALLING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS CONTROL UNIT ON THE RIGHT .
- Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING THE TENSION STRUT ON THE RIGHT SHOCK TOWER .
- Refer to INSTALLING RIGHT CLEAN AIR PIPE .
- Refer to PARTIALLY INSTALLING THE RIGHT ENGINE VENTILATION LINE .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to INSTALLING THE CARRIER PLATE .
- Refer to INSTALLING BOTH INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
