Installing all spark plugs

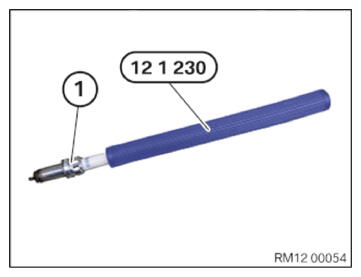

• Insert spark plug (1) in the special tool  0 496 065 (12 1 230)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Do not drop the spark plug into the spark plug shaft. This can lead to a reduction of the electrode gap and can thus impair smooth running of the engine, especially in idle position.

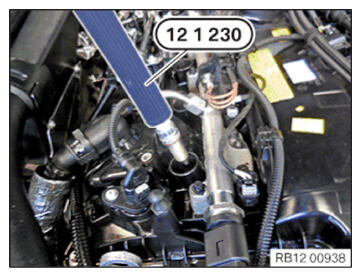

• Screw the spark plugs into the engine hand-tight with the special tool 0 496 065 (12 1 230).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Only a swiveling extension for the reversible ratchet may be used. Rigid mounting tool and variable plug connections with rigid option may not be used; there is a risk that the insulator breaks.

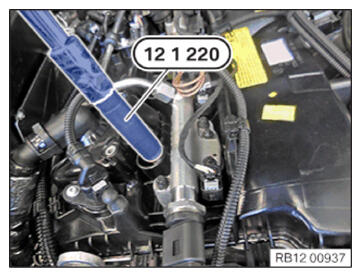

• Tighten the spark plugs with the torque wrench, the special tool 0 495 560 (12 1 220) and with a pivotable extension.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Spark plugs
  M12x1.25	Tightening torque	23 Nm

Follow-up work

• Refer to INSTALLING ALL IGNITION COILS .
• Refer to MOUNTING THE SERVICE OPENING IN THE SOUND INSULATION ON TOP OF THE ENGINE .
• Refer to INSTALLING ACOUSTIC COVER .
