Remove the tail light on the right side panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE STORAGE SHELF .
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE COVER OF THE SIDE MEMBER .
- Refer to REMOVING BATTERY COVER .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE COVER OF THE SEAT BELT FINISHER STRIP .
- Refer to REMOVING THE D-PILLAR TRIM PANEL .
- Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.

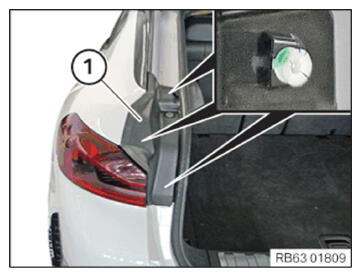

- Loosen nut (1)
.
- Unclip the cover of the water channel (1)
.

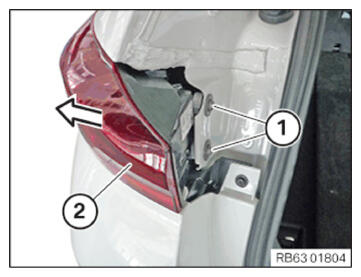

- Release screws (1) and feed out the tail light on the side panel (2) in arrow direction.
NOTE:
TECHNICAL INFORMATION
Observe the note on unlocking and disconnecting plug connections.
For additional information see: UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS .
Observe the note on unlocking and disconnecting plug connections.
For additional information see: UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS .
- Unlock plug connection (1) and disconnect.
- Remove the tail light on the side panel (2) .
