Remove fog light
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE WHEEL .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .

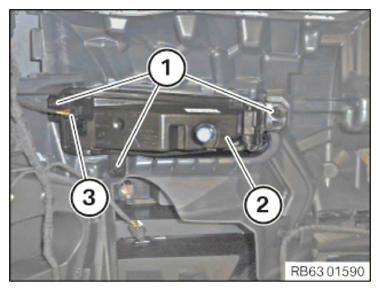

- Loosen screws (1).
- Unlock plug connection (3) and disconnect.
- Remove the fog light (2).
