Remove both LED modules for the light carpet
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE DOOR SILL TRIM PANEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the LED module for the light carpet

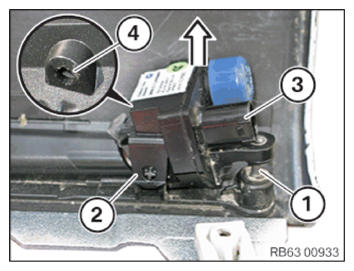

- Unscrew the adjustment screw (1) from the LED module (3) by turning it counter-clockwise.
- Loosen the detent (2).
- Guide the LED module (3) out of the guide (4).
