Install both LED modules for the light carpet
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the LED module for the light carpet

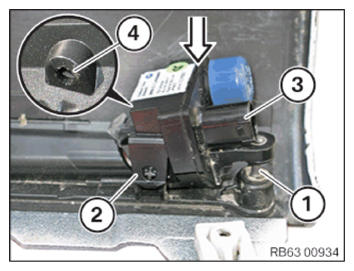

- Position the LED module (3) in the guide (4).
- Press LED module (3) into detent (2).
- Turn the adjustment screw (1) clockwise to screw it into the LED module (3).
Follow-up work
- Refer to INSTALLING THE DOOR SILL TRIM PANEL .
- Refer to ADJUSTING THE LED MODULE FOR THE LIGHT CARPET .
