Removing rear reflector
Precondition
- Trunk lid opened
NOTE:
RISK OF DAMAGE
Paint damage.
Mechanical or chemical action may lead to paint damage.
Paint damage.
Mechanical or chemical action may lead to paint damage.
- Cover up working area with specified covering material only.
NOTE:
Description is for left component only. Procedure on the right side is identical.

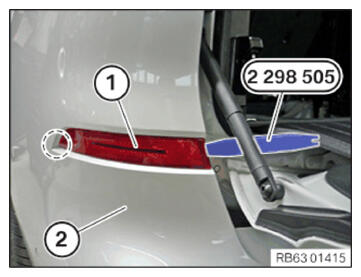

- Carefully lift the rear reflector (1) slightly out of the bumper cover (2) using the special tool 2 298 505 .
- The rear reflector (1) should only be lifted slightly out of the bumper cover (2), otherwise the rear reflector (1) will break in the highlighted area.
- Carefully pull rear reflector sideways out of the bumper cover (2).
- Unlock plug connection (1) and disconnect.
- Remove rear reflector (2).
