Remounting the LED turn signal

Removing LED turn indicator/daytime running lights

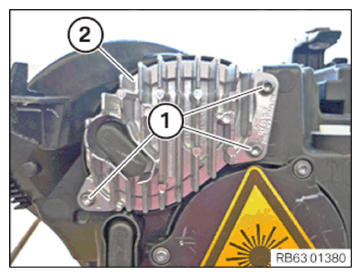

• Loosen screws (1).
• Pull the LED turn indicator/daytime running lights (2) from the headlight.

  Courtesy of BMW OF NORTH AMERICA, INC.

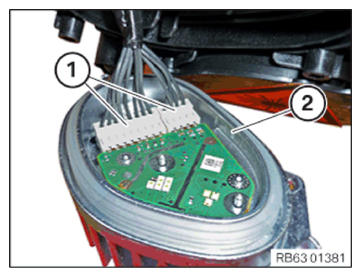

• Unlock and disconnect the connector (1) from the LED turn indicator/daytime running lights (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing LED turn signal for daytime driving lights

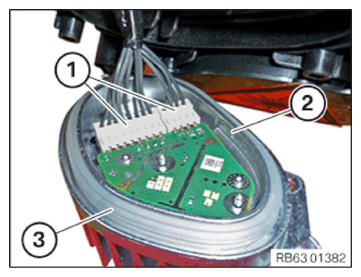

• Check the seal (3) on the LED turn signal/daytime running lights (2) for damage and replace as needed.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the LED turn signal/daytime running lights (2) in the headlight.
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
