Remounting the LED module for the daytime driving lights
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the LED module for the daytime driving lights
- Loosen screws (1).
- Pull LED module (2) out of headlight.

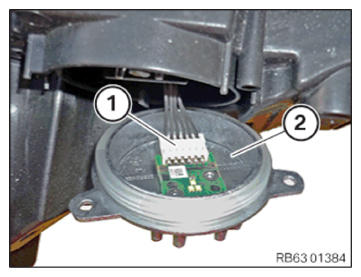

- Unlock connector (1) at LED module (2) and disconnect it.
Installing the LED module for daytime driving lights
- Check the seal (3) on the LED module (2) for damage and replace as needed.
- Connect connectors (1) and lock.
- Position the LED module (2) in the headlight.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| LED module of daytime running lights | ||
| Screw | tightening torque | 1.5 Nm |
