63 11 980 Installing left or right headlight repair kit (headlight removed)

Precondition

Headlight removed

NOTE: TECHNICAL INFORMATION
Use the repair kit to replace damaged holders. The replacement of the headlamp is not required.

NOTE: Description is for right component only. The procedure on the left side is identical.

NOTE: TECHNICAL INFORMATION
To protect the component from scratches: Place the component on a soft surface.

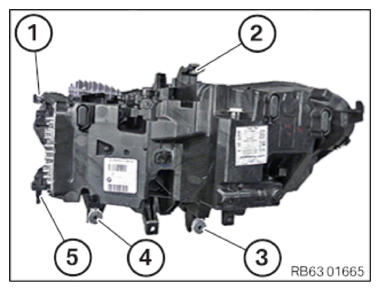

The repair kit for headlight can be used for the holders (1) and (2) and (3) and (4) and (5).

Courtesy of BMW OF NORTH AMERICA, INC.

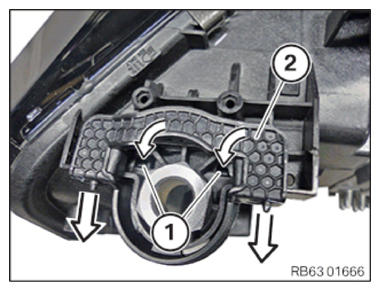

Unlock the detents (1) in arrow direction and remove the part (2).
The part (2) is no longer required.

Courtesy of BMW OF NORTH AMERICA, INC.

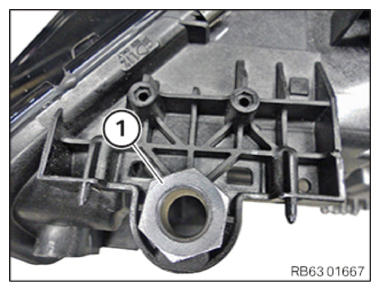

Release the screw sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

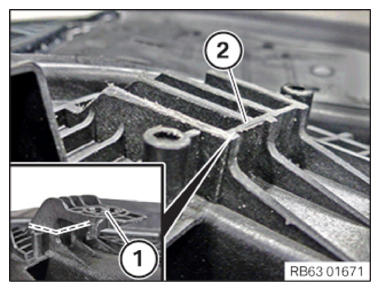

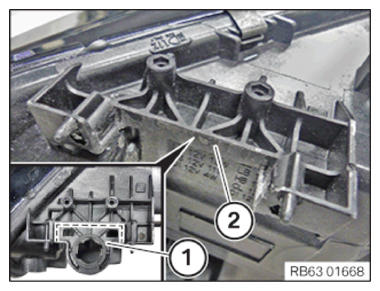

If applicable, remove the damaged holder (1) along the dotted line as shown (2).

Courtesy of BMW OF NORTH AMERICA, INC.

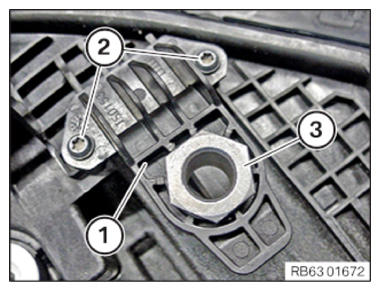

Attach the new holder (1) with the included screws (2). Remount the screw sleeve (3).

Courtesy of BMW OF NORTH AMERICA, INC.

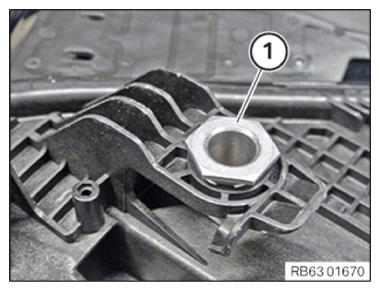

Release the screw sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.
If applicable, remove the damaged holder (1) along the dotted line as shown (2).

Courtesy of BMW OF NORTH AMERICA, INC.

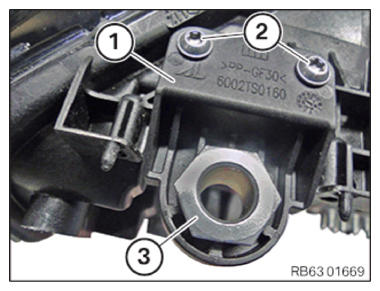

Attach the new holder (1) with the included screws (2).
Remount the screw sleeve (3) on the new holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

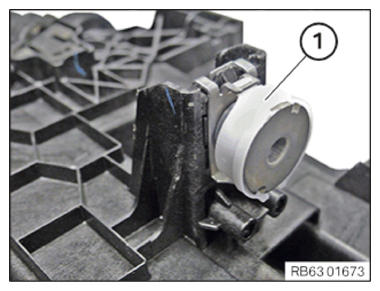

Disassemble the adjusting element (1).

Courtesy of BMW OF NORTH AMERICA, INC.

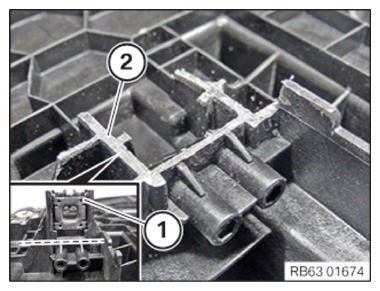

If applicable, remove the damaged holder (1) along the dotted line as shown (2).

Courtesy of BMW OF NORTH AMERICA, INC.

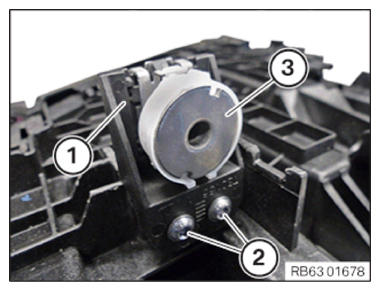

Attach the new holder (1) with the included screws (2).
Remount the adjusting element (3) on the new holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

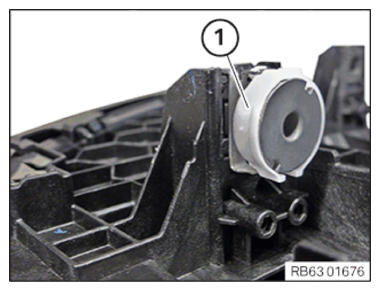

Disassemble the adjusting element (1).

Courtesy of BMW OF NORTH AMERICA, INC.

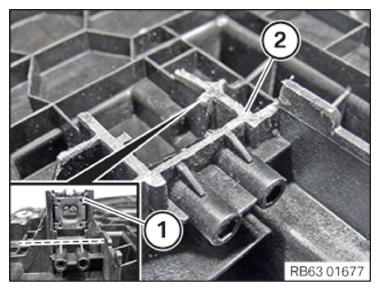

If applicable, remove the damaged holder (1) along the dotted line as shown (2).

Courtesy of BMW OF NORTH AMERICA, INC.

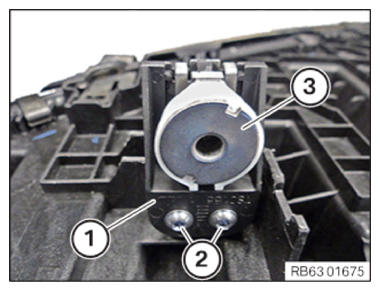

Attach the new holder (1) with the included screws (2).
Remount the adjusting element (3) on the new holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

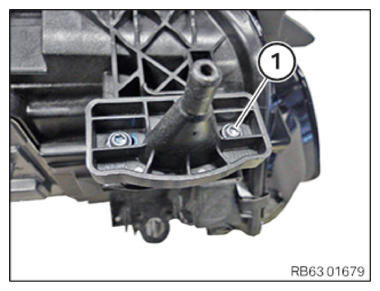

Release the screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

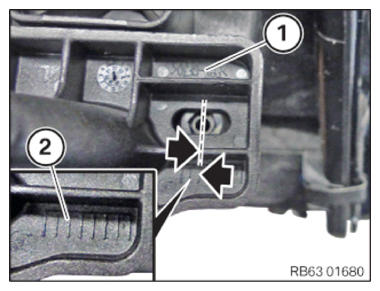

Read the position of the holder (1) on the scale (2) and note.
NOTE: Use the center point of the screw hole to determine the scale value.

Courtesy of BMW OF NORTH AMERICA, INC.

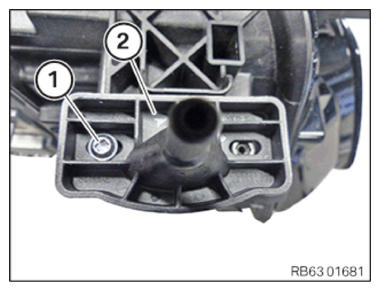

Release the screw (1) and remove the malfunctioning holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

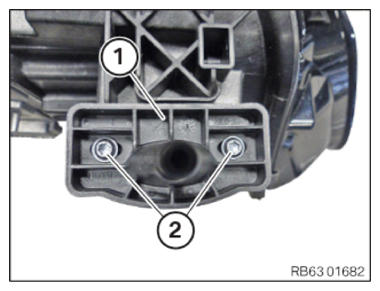

Position the new holder (1) at the previously noted scale position and attach with the included screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.
