Removing the LED fan
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE WHEEL .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Loosen screws (1).
- Remove protective cap (2).
- Unlock plug connection (1) and disconnect.
- Remove the LED fan (2) with cover cap.

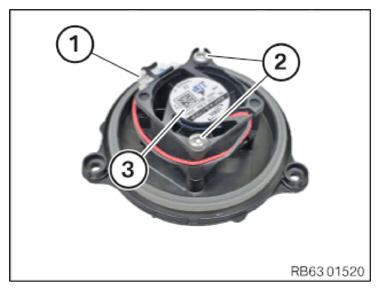

- Unclip the connector (1).
- Loosen screws (2).
- Remove the LED fan (3).
