Installing LED fan

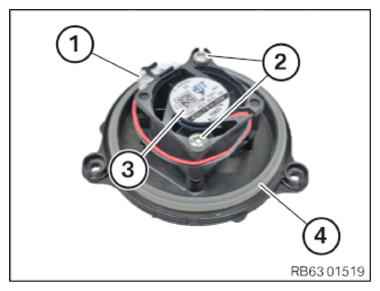

- Positioning LED fan (3).
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| LED fan on lid | ||
| Screw | tightening torque | 1.5 Nm |
- Clip in the connector (1).
- Check seal (4) for damage, replace if necessary.

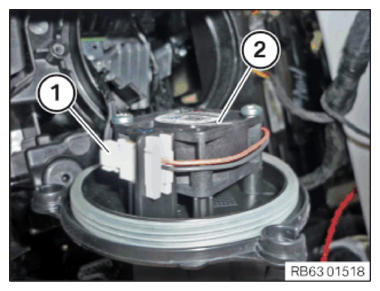

- Connect the connector (1) to the LED fan (2).

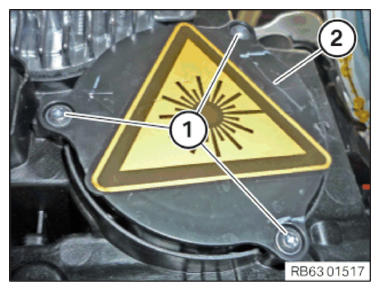

- Position the cover cap (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| LED fan with lid on headlight | ||
| Screw | tightening torque | 1.5 Nm |
Follow-up work
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to MOUNTING THE WHEEL .
