Installing the LED module for daytime driving lights

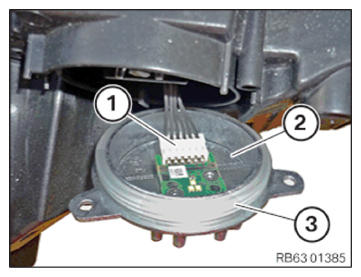

• Check the seal (3) on the LED module (2) for damage and replace as needed.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

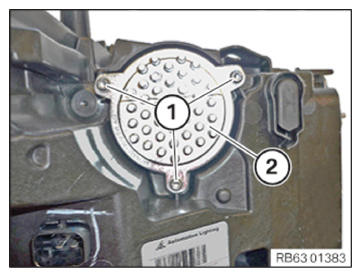

• Position the LED module (2) in the headlight.
• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

LED module of daytime running lights
Screw	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
