Prepare installation
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Protect the vehicle interior against contamination.

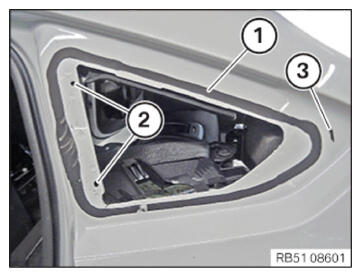

- Remove the remaining guide pins (2) and dual lock tape (3).
- Clean body aperture (1) with adhesive bead.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Clean the painted metal surfaces without the adhesive bead.CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 - After cleaning, allow to air out.TECHNICAL DATA SPECIFICATION
Air drying time after cleaning Window glass or painted panel without residual adhesive bead 5 min Body with adhesive bead 15 min - Stick new dual lock tape (2) to marks on body area.
Parts: Dual Lock tape
- Shortly before adhesion with the standard tool, remove adhesive bead (1) on the body aperture.
Standard tool:
Pinchweld scraper set
Pinchweld scraper set
81 62 0 410 436
NOTE: TECHNICAL INFORMATION
Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents. - Apply the pinch weld scraper as pictured and cut back the adhesive bead (1).TECHNICAL DATA SPECIFICATION
Residual height of the adhesive bead Residual height of the adhesive bead max. 1 mm - Be sure to touch up paintwork damage.
- Sand large-scale damage down to the bare metal and coat.TECHNICAL DATA SPECIFICATION
HS-AM multi-base filler VOC Layer thickness 30 μm... 40 μm Hardening time with infrared 10 min Hardening time without infrared 60°C 30 min Hardening time without infrared 20°C 1 Tag
