Removing the model inscription
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- To avoid paint damage: Mask off the component in the working area with plastic adhesive tape.

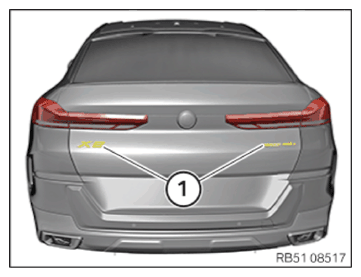

- Carefully heat the model inscription (1) with a hot air blower and release it from the adhesive tape with the special tool 0 490 539 (00 9 322)
.TECHNICAL DATA SPECIFICATION
Heating using hot air blower Surface temperature 40°C... 50°C - Remove adhesive residue from the trunk lid.
