Installing the rear emblem

Remove adhesive residue on the emblem socket (1) and clean the adhesive area.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Replacing the emblem.
Parts: Emblem

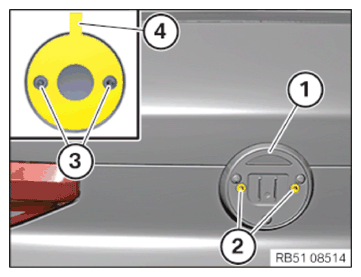

Check the nozzle (2) for damage and replace if necessary.
Coat the guide pins (3) of the emblem with a lubricant.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION AID SPECIFICATION

Lubricants G14 900 ml, Can 83232360412
Detach the liner (4) downwards from the bonding surface on the emblem.

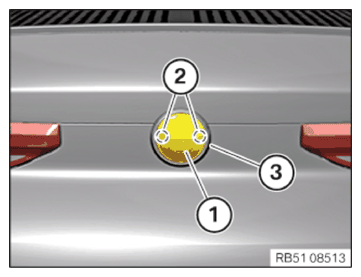

Insert the badge (1) with the guide pins (2) in the grommets and press all around on the base (3).

Courtesy of BMW OF NORTH AMERICA, INC.
