51 13 350 Removing and installing/replacing outer left D-pillar trim panel
>>
Installing the outer D-pillar trim panel
Installing the outer D-pillar trim panel

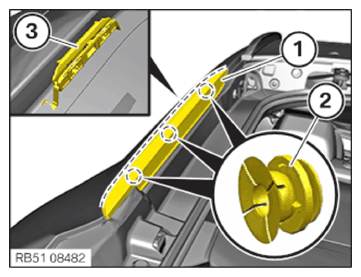

Check whether the clips (2) and clamps (3) are present and have damage.
Damaged or missing clips (2) and clamps (3) must be replaced.
Position and clip in the outer D-pillar trim panel (1) at the clips (2) and the clamps (3).
Courtesy of BMW OF NORTH AMERICA, INC.
