Installing the trim on the lower bumper cover

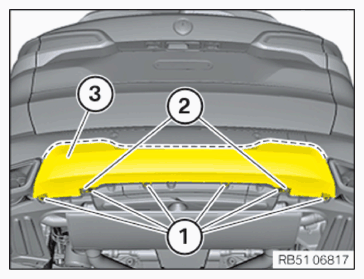

Correctly position the trim on the lower bumper cover (3) and engage in the latch mechanism along the dashed line.
Mount blind rivet (2) using the special tool 0 496 521 (002 230) .

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Bumper panel, rear
Hexagon screw	Tightening torque	3.0 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
