Removing transmission bearing support

Preliminary work

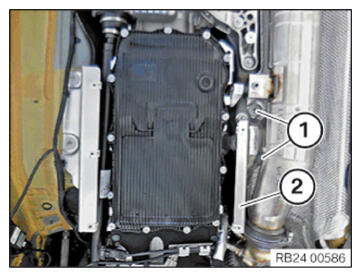

• Refer to REMOVING REAR UNDERBODY PROTECTION .

• Loosen nuts (1).
• Remove retaining plate (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

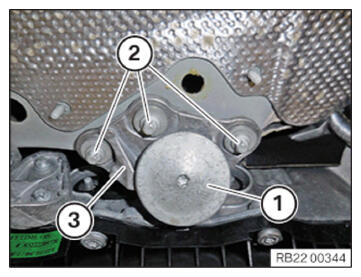

• Version 1:
• Release vibration absorber (1).
• Loosen screws (2).
• Remove transmission support holder (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

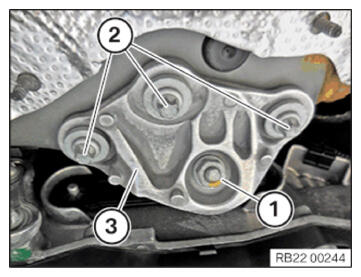

• Version 2:
• Unfasten nut (1).
• Loosen screws (2).
• Remove transmission support holder (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
