Lower front subframe

NOTE: RISK OF DAMAGE
Failure to comply with the specification.
Component damage.

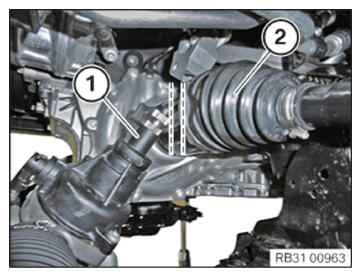

When lowering the front subframe, ensure sufficient distance between the steering gear (1) and the output shaft (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

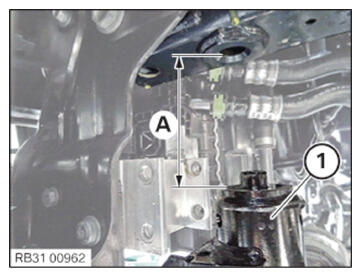

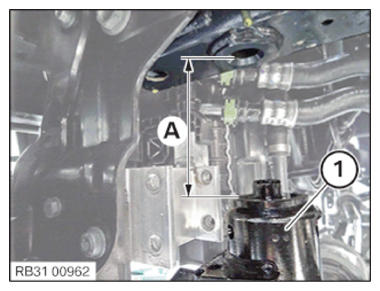

Lower the front subframe (1) with the mobile lifting table by dimension (A) .
Dimension (A) = maximum 10 cm

Courtesy of BMW OF NORTH AMERICA, INC.
