Removing the carpet on the center console on the left and right sides
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the carpet from the center console at the side

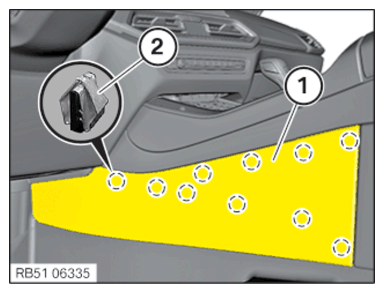

- Unclip and remove carpet (1) from clamps (2), starting from the front.
