Removing the ADCAM camera
Removing the ADCAM camera (basic version)
NOTE:
TECHNICAL INFORMATION
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.

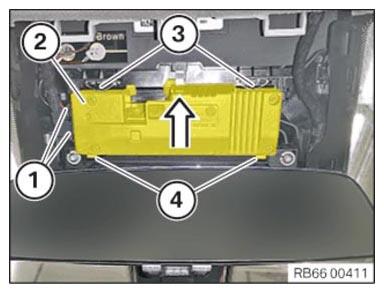

- Unlock plug connections (1) and disconnect.
- Push the ADCAM camera (2) upward in the arrow direction against the springs (3).
- Remove ADCAM camera (2) from guides (4).
Removing the ADCAM camera (Mid variant) with the lens hood
NOTE:
TECHNICAL INFORMATION
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.

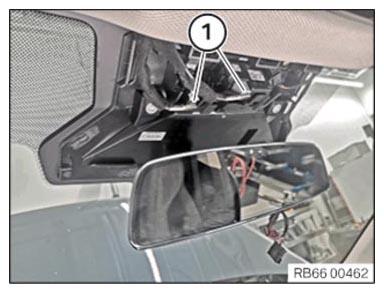

- Unlock plug connections (1) and disconnect.

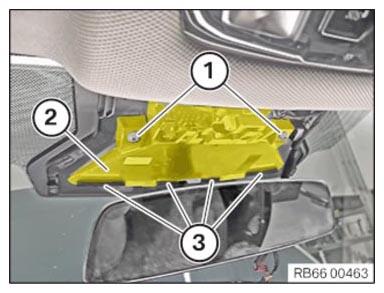

- Loosen screws (1).
- Guide out the lens hood (2) of the ADCAM camera at the guides (3) and remove it.
