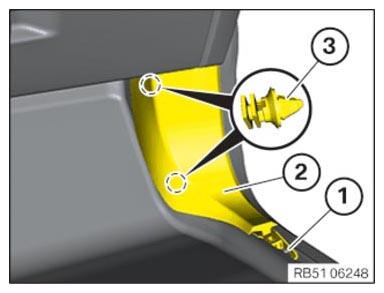

Installing side trim panel in footwell on right A-pillar

• Check the clips (3) for damage and replace where required.

  Replace faulty clips (3).

• Position side trim panel (2) and engage at the clips (3).
• Make sure that the side trim panel (2) is correctly fitted against edge protection.
• Install the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
