Install bracket for right intake silencer

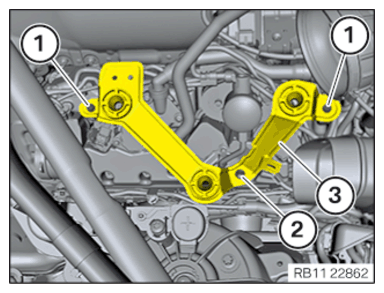

- Position holder (3).
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Screw on the holder of the intake silencer M6x16 screw Tightening torque 8 Nm - Tighten nut (2).TIGHTENING TORQUES SPECIFICATION

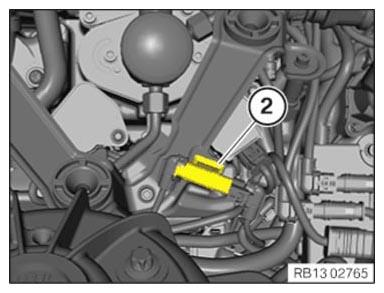

Nut on the holder of intake silencer Nut M6 tightening torque 8 Nm - Chinese version:
Fix the clip (2).

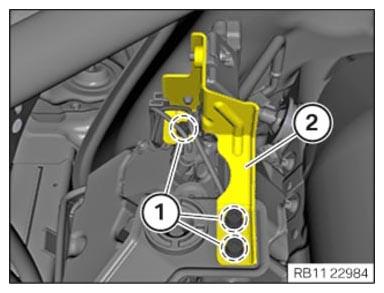

- Version with a gasoline particulate filter:
Position holder (2) of the gasoline particle sensor.
Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATIONScrew on the holder of the intake silencer M6x16 screw Tightening torque 8 Nm
