Releasing the brake hose and the cable on the left and right
Releasing the brake hose and the cable on the left and right
NOTE:
Perform the steps on the right and left side.
Releasing the brake hose and cable

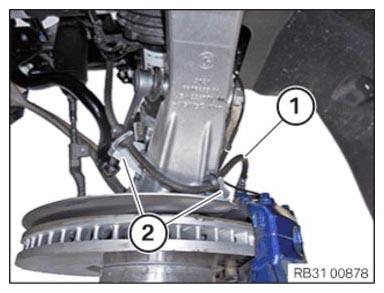

Release the brake hose (1) from the holders (2).
Courtesy of BMW OF NORTH AMERICA, INC.

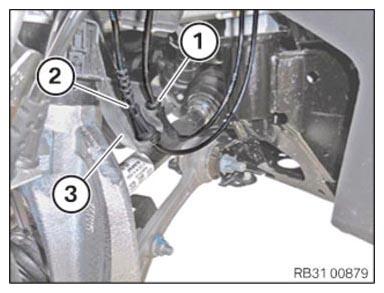

Remove cable (2) from holder (3).
NOTE:
Only perform the operation on the left side.
Remove cable (1) from holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.
