Installing underbody protection at rear
Installing underbody protection at rear

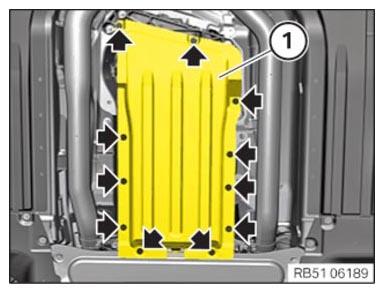

Insert underbody protection (1) and position correctly.
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
Undershield/frame
Hexagon screw
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
