Installing the front bottom right wheel arch cover

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the front bottom wheel arch cover

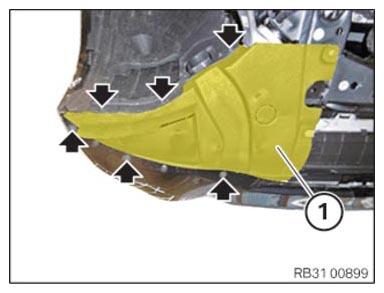

Tighten all bolts (arrows).

TIGHTENING TORQUES SPECIFICATION

Lower front wheel arch cover
Thermoplastic hexagon screw	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
