Installing the center strut brace mount

Courtesy of BMW OF NORTH AMERICA, INC.

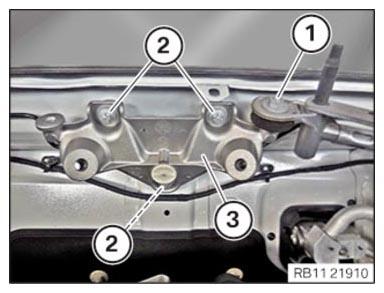

• Insert and install the mount (3) for the center strut brace.
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Mount of center strut brace to lower part of cowl cross-member
  M8X30	tightening torque	28 Nm

• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Wiper console to body
  Nut M8 Replace nut.	tightening torque	11.8 Nm
