Fastening the right and left output shafts onto the wheel bearing
NOTE:
Perform the steps on the right and left side.
Fasten the output shaft on the wheel bearing
NOTE:
TECHNICAL INFORMATION
Installation notes for spur gearing must be observed without fail.
Installation notes for spur gearing must be observed without fail.

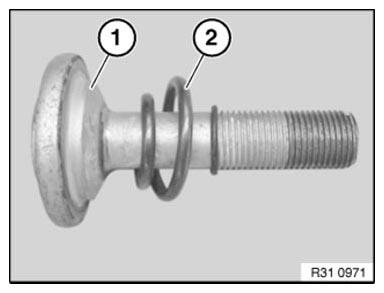

- Replace the collar screw (1) and compression spring (2).
Parts: Collar screw and compression spring
- Note installation position of compression spring (2).
- Keep the collar screw (1) and the front gearings of the wheel bearing and the output shaft clean and free of grease.

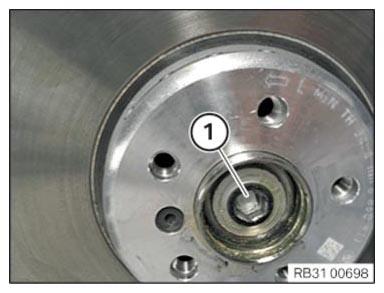

- Hand-tighten the collar screw (1) with the compression spring.NOTE: TECHNICAL INFORMATION
The front gearing of wheel bearing and driven shaft must be installed with a positive fit (tooth in tooth position). - Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).
- Press brake pedal.
- Tighten the collar screw.TIGHTENING TORQUES SPECIFICATION
Output shaft to wheel bearing M16
Replace collar screw and spring.Snug torque 210 Nm Angle of rotation 90°
