Detach transmission cross member
Detach transmission cross member

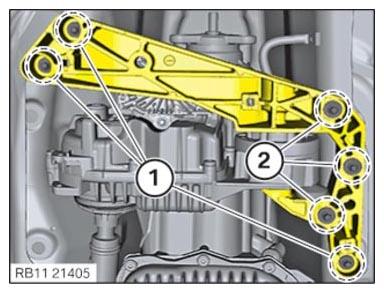

Release the screws (1) the transmission cross member (2).
Courtesy of BMW OF NORTH AMERICA, INC.

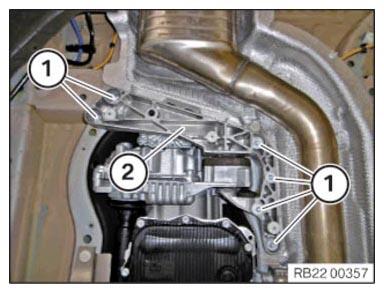

Loosen screws (1).
Loosen screws (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
