Filling the high-temperature coolant circuit with the vacuum filler

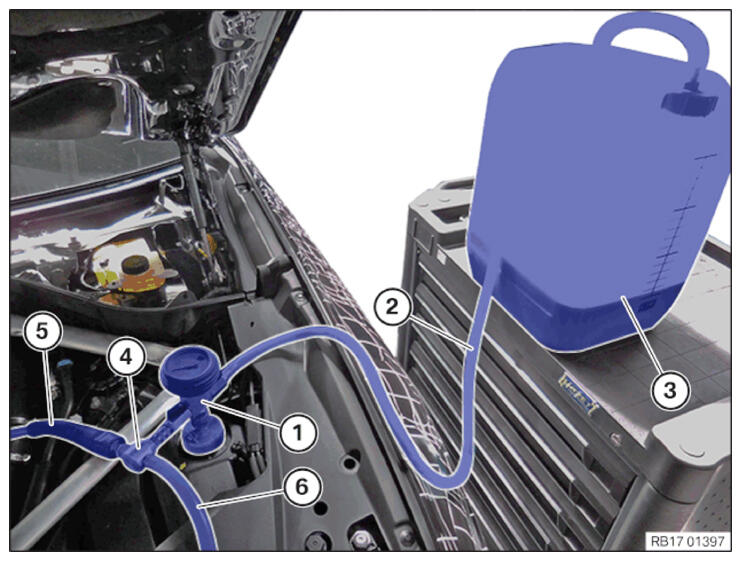

Vacuum filling equipment

Courtesy of BMW OF NORTH AMERICA, INC.

Vacuum filling equipment - connected to the coolant expansion tank

Vacuum filling equipment with pressure gauge and shutoff valves
Filling hose
Fluid tank with coolant
Venturi nozzle
Compressed air connection (7 bar)
Exhaust hose (route exhaust hose into a collecting vessel)

Precondition

The coolant expansion tank of the cooling system must be empty. There must be sufficient pre-mixed coolant in the coolant reservoir of the vacuum filler, 1 I to 2 I more than the full quantity prescribed for the vehicle. The liquid reservoir of the vacuum filler must be positioned at the same height as the coolant expansion reservoir.

Compressed air connection with 7 bar pressure must be available. Heating must be set to maximum temperature.

The vacuum filling device must be functional and free of dirt.

NOTE: TECHNICAL INFORMATION
Notes for working on the engine cooling system.
For additional information see: NOTES FOR WORKING ON THE COOLING SYSTEM .

NOTE: TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
The coolant must be replaced when replacing and removing components which depend on the anti-corrosion effect of the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.

NOTE: TECHNICAL INFORMATION
Filling without the vacuum filling equipment (watering can filling) is not permitted.
Failure to observe these instructions may result in component or engine damage. The filling specification must be observed.
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.

NOTE: TECHNICAL INFORMATION
It must be ensured that the ignition (terminal 15) is switched off before filling with the vacuum filling equipment.

Not the type of coolant

Coolant in the collecting vessel of vacuum filling equipment

Courtesy of BMW OF NORTH AMERICA, INC.

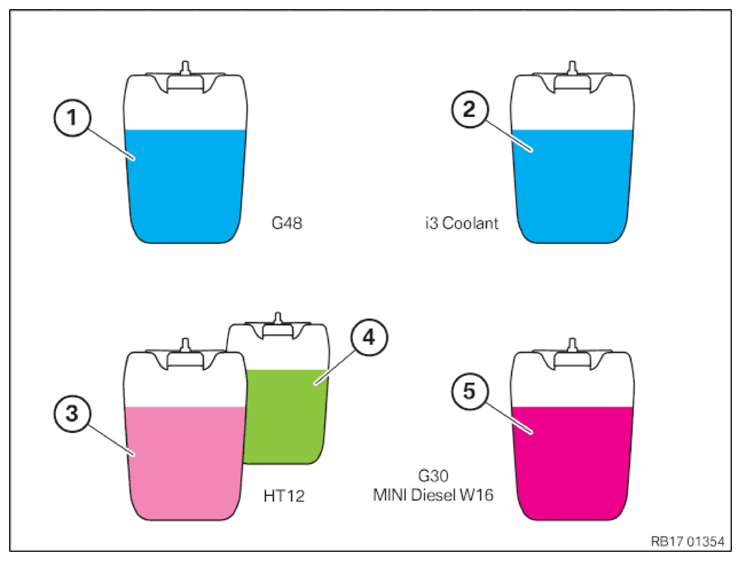

Choose the correct coolant for filling.

In general, a vehicle must be filled with the coolant with which it was delivered from the plant.

G48 (Blue) (BMW UC-87)
Must not be mixed with i3 Coolant or G30 MINI Diesel W16 or HT12 (Pink), HT12 (Green).
i3 Coolant (Blue) (BMW LC-13)
Is exclusively used for i3 heater circuit. i3 Coolant must not be added to other coolant circuits or be mixed with other coolants.
HT12 (Pink) (BMWUC-18)
Must not be mixed with i3 Coolant or G30 MINI Diesel W16 or G48 (Blue).
HT12 (Green) (BMWUC-18)
Must not be mixed with i3 Coolant or G30 MINI Diesel W16 or G48 (Blue).
G30 (Pink) (BMW UC-07)
May only be used for MINI Diesel W16. G30 must not be added to other coolant circuits or mixed with other coolants.

NOTE: RISK OF DAMAGE
Damage to the engine or components in high-voltage vehicles
If the wrong coolant is used, corrosion or gelling can occur in the coolant circuit.

Only use coolants that have been approved for the specific vehicle.
Only fill the vehicle with the coolant with which it was delivered ex works.
Only mix compatible coolants. The color does not indicate the compatibility of coolants.
Selection of the correct coolant exclusively via part number.

NOTE: TECHNICAL INFORMATION
When using vacuum filling equipment to fill the coolant circuit, you must use special tool 5 A31 EF2 (strainer) to protect the inside of the coolant circuit from contaminants.

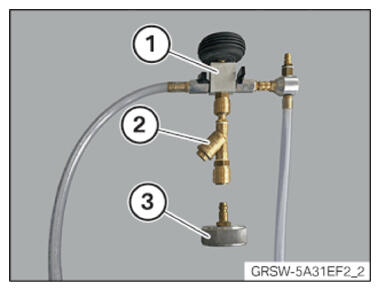

Attach special tool (2) 5 A31 EF2 to the vacuum filling device (1).
Connect the special tool (2) to the appropriate adapter (3) from the special tool set 0 494 417 (17 0 100) .

Courtesy of BMW OF NORTH AMERICA, INC.

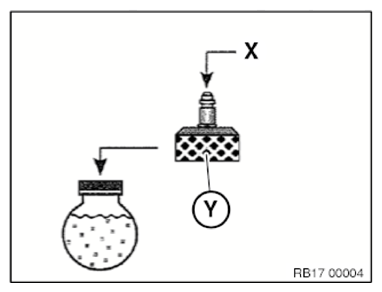

Select a suitable adapter (Y) from the special tool set 0 494 417 (17 0 100) :

Type	Motor	Adapter (Y) from 17 0 100
G05/G07	N63B44M3	170 113
G07	S68B44T0	170 113
F95/F96	S68B44T0	170 113

Fill the liquid reservoir of the vacuum filler with 1 I to 2 I more than the full quantity of coolant prescribed for the vehicle.

TECHNICAL DATA SPECIFICATIONS

Filling capacity of high-temperature coolant circuit G05/G06 N63B44M3 N63B44T3
N63B44M3/N63B44T3	12.6 l
N63B44M3/N63B44T3 (SA823)	13.6 l

Connect the selected adapter (Y) to the coolant expansion bracket.
Connect the vacuum filler to connection (X) of the adapter.

Courtesy of BMW OF NORTH AMERICA, INC.

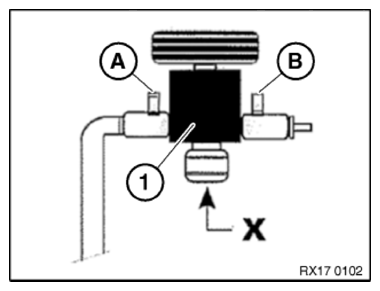

Close shut-off valves (A) and (B) of the vacuum filling unit (1).
(X) is the connection to the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.

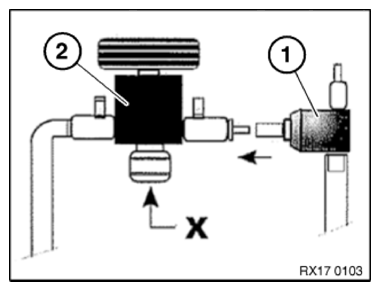

Connect the Venturi nozzle (1) to the vacuum filling unit (2).
(X) is the connection to the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.

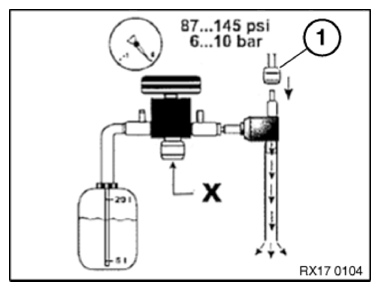

Connect compressed air (1).
(X) is the connection to the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.

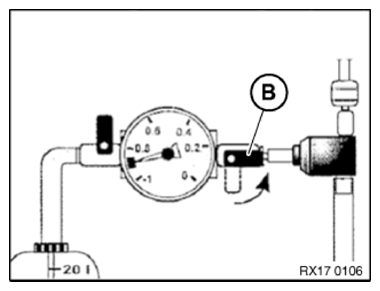

Open the shut-off valve (B).
The Venturi nozzle generates a current noise.

Courtesy of BMW OF NORTH AMERICA, INC.

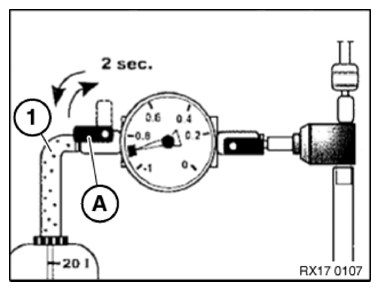

Open the shut-off valve (A) until the filling hose (1) is filled without bubbles.
Close the shut-off valve (A) again.
» The filling hose (1) is deflated.

Courtesy of BMW OF NORTH AMERICA, INC.
Check coolant hoses for porosity and replace if necessary.
NOTE: TECHNICAL INFORMATION
During vacuum build-up, the coolant hoses will contract.

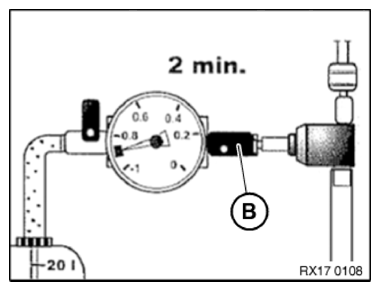

Once a vacuum of -0.8 to -0.95 bar has been reached in the coolant circuit (duration approx. 2 minutes), close the shut-off valve (B).

Courtesy of BMW OF NORTH AMERICA, INC.

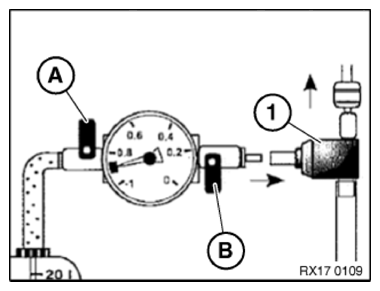

Check whether the shut-off valves (A) and (B) are closed.
Disconnect Venturi nozzle (1).

Courtesy of BMW OF NORTH AMERICA, INC.

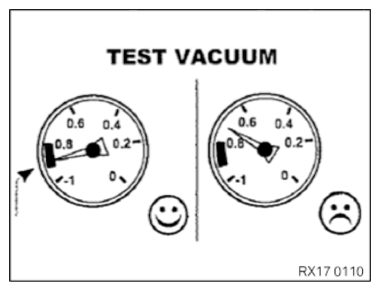

Check
The vacuum in the coolant circuit must be maintained for at least 2 minutes.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» vacuum falls.

Measure
Find the leek, repair it and start the filling process again.
Check
The vacuum in the coolant circuit must be maintained for at least 2 minutes.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Vacuum remains constant.

Measure
Proceed with the infestation.
Keep the shut-off valve (B) closed during the filling process.

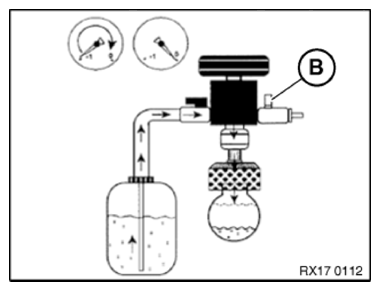

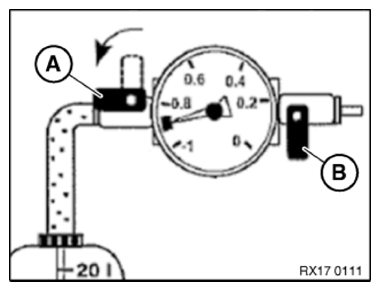

To fill the cooling system, open the shut-off valve (A) to the liquid container of the vacuum filler.

Courtesy of BMW OF NORTH AMERICA, INC.
End the filling process when the pointer in the pressure gauge is at 0 bar or has stopped falling.
If necessary, release the remaining vacuum. To do this, open the shut-off valve (B).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the vacuum filling unit with the adapter from the coolant expansion tank.

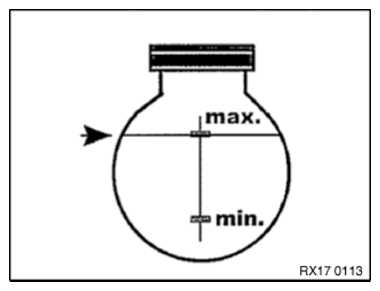

Adjust the coolant level to the maximum mark.
After filling the cooling system with the vacuum filler, also carry out the cooling system degassing routine.
