Installing the front brake disc chamber (high brake)
NOTE:
TECHNICAL INFORMATION
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.

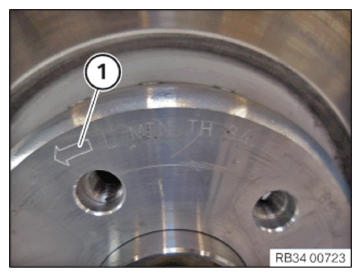

- If an arrow 1 is stamped on the brake disk, it must point in the driving direction!
In this case, the left and right brake disks are different!
- Clean contact surface of wheel hub thoroughly and remove any traces of rust if necessary.
Unevenness of the contact surface could cause distortion of the brake disk!
- Mount brake disc (2).
- Position and tighten the screw (1).
- Replace the screw (1).
Parts: Screw
TIGHTENING TORQUE SPECIFICATIONSBrake disc to front wheel hub M8
Replace screw.tightening torque 16 Nm - Mount the brake caliper in the arrow direction.
- Insert screws (1) and tighten.
- Replace screws (1).
Parts: Screws
TIGHTENING TORQUE SPECIFICATIONS
| Brake caliper/brake anchor plate at front swivel bearing | ||
| M12 Replace screw. |
tightening torque | 130 Nm |
Follow-up work
- Refer to GREASE BRAKE PADS, BRAKE ANCHOR PLATE AND BRAKE CALIPER WITH BRAKE PAD PASTE .
- Refer to INSTALLING FRONT BRAKE PADS .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to ADHESION OF BRAKE PADS TO BRAKE PISTONS .
- Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to COMMISSIONING/BEDDING IN (BRAKE) NEW BRAKE PADS AND BRAKE DISCS .
