Installing the oil-level sensor

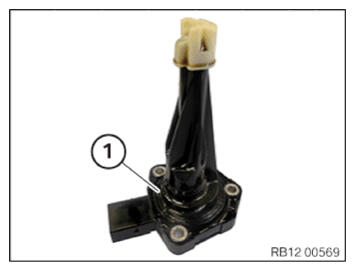

• Prepare the oil-level sensor

• Replace sealing ring (1).

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

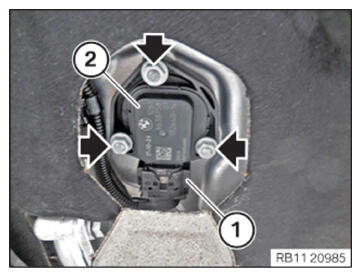

• Insert and install the oil-level sensor (2).
• Tighten the nuts (arrows).
  TIGHTENING TORQUE SPECIFICATIONS



  Oil level sensor to oil sump
  M6 hexagon nut	Joining torque	2 Nm
  	Tightening torque	8.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (1).

  The connector (1) must engage audibly.

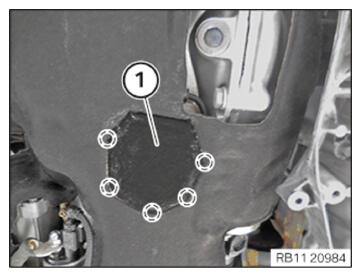

• Feed in the cover (1) in the marked  area and install.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FILLING ENGINE OIL .
• Refer to OPENING THE OIL FILLER CAP .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to INSTALLING THE STIFFENING PLATE .
