Install oil pressure sensor

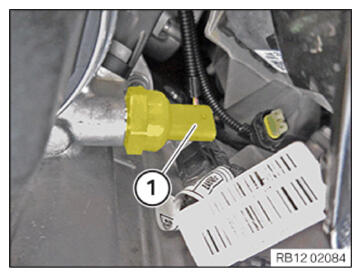

• Insert and install oil pressure sensor (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

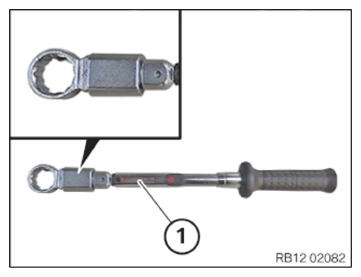

• Prepare the tool (1) as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

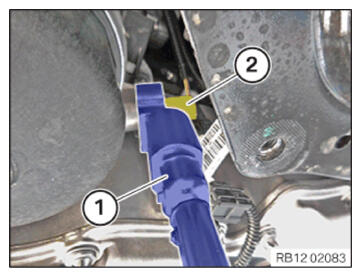

• Tighten oil pressure sensor (2) with the prepared tool (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Oil pressure sensor
  M 12x1.5	Tightening torque	15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

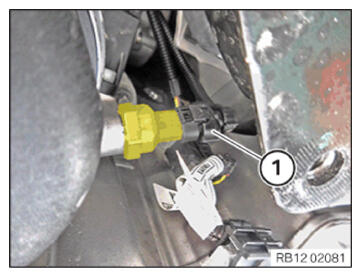

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STIFFENING PLATE .
