Removing adapter cable for oil-level sensor
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THRUST FIELD .
- Release wiring harness section (1) from holder (2).

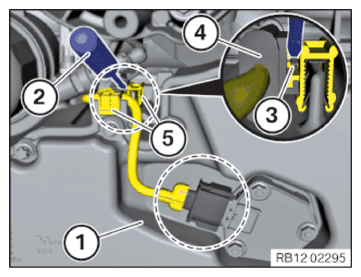

- Unlock plug connection (1) and disconnect.
- Unlock snap-in lug (3) with a commercially available screwdriver (2), and push upwards out of guide.
- Release the wiring harness mounting (5).
- Pull plug connection (4) downward.
- Unlock plug connection (4) and disconnect.
