Installing the engine wiring harness for the sensor system 2

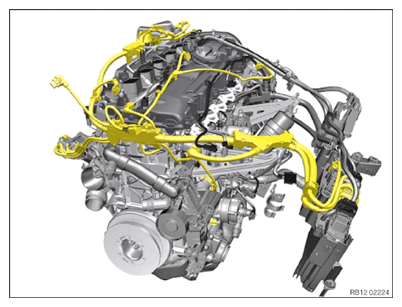

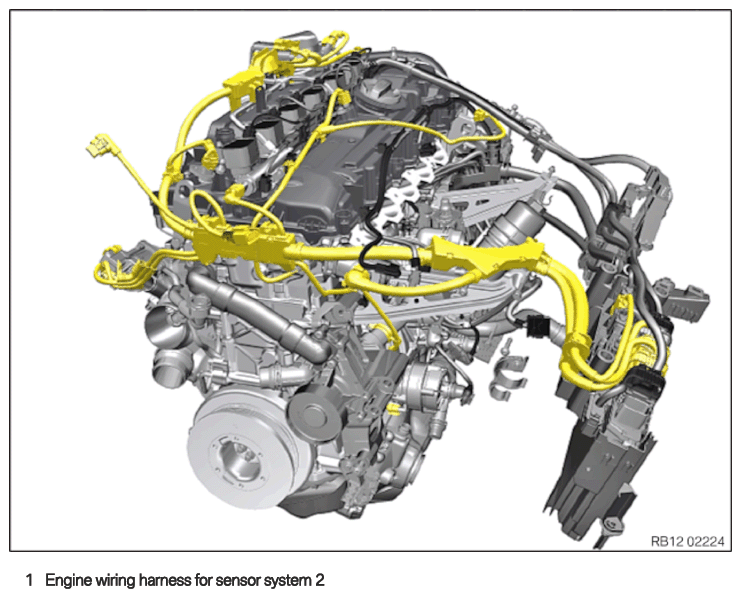

Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Feed in the engine wiring harness (1)
for the sensor system 2 and install it.

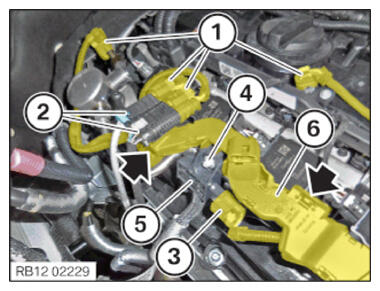

- Feed in the engine wiring harness (6)
for the sensor system 2 and install it.
The locks (arrows) must engage audibly.
- Feed in differential pressure sensor (5) and position.
- Tighten down screw (4) . TIGHTENING TORQUE SPECIFICATIONS
Differential pressure sensor to holder TS6X18 Tightening torque 3.5 Nm - Connect connectors (3)
and lock.
The connector (3) must engage audibly.

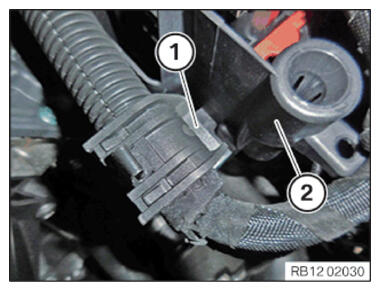

- Connect the connector (2)
with engine wiring harness (6)
for the sensor system 2 and lock it.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.

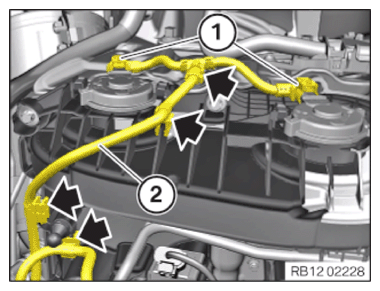

- Feed in the engine wiring harness (2) for sensor system 2 and install it.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).

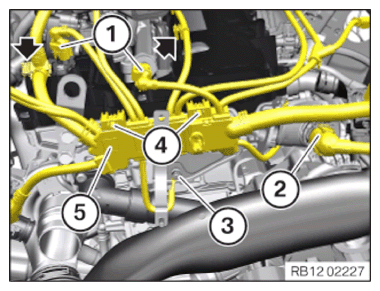

- Feed in the engine wiring harness (5) for sensor system 2 and install it.
- Ensure that locks (4) engage audibly.
- Tighten nut (3)
.TIGHTENING TORQUE SPECIFICATIONS
Front ground cable to cylinder head M6 tightening torque 8 Nm - Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).

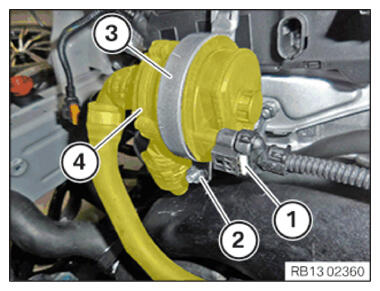

- Feed in and position auxiliary coolant pump (4) .
- Feed in and position retaining bracket (3) .
- Tighten nut (2)
.TIGHTENING TORQUE SPECIFICATIONS
Electric coolant pump to holder M6 tightening torque 8 Nm - Connect connectors (1)
and lock.
The connector (1) must engage audibly.

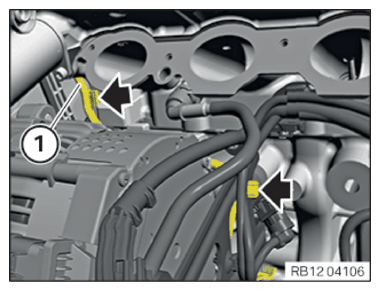

- Feed in the engine wiring harness (1) for the sensor system 2 and install it.
- Secure the clamps (arrows).

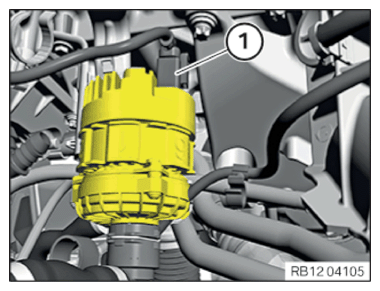

- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the (3) electric coolant pump.
- Position the retainer (2) .
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Electric coolant pump to holder M6 tightening torque 8 Nm - Fasten the cable clip (arrow).
- Fasten the cable bracket (1)
to the bracket (2)
.
- Fasten the cable clip (3) .

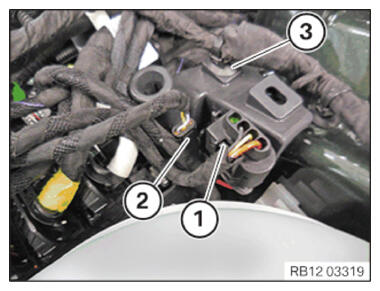

- Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

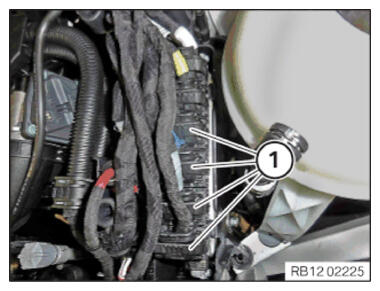

- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.

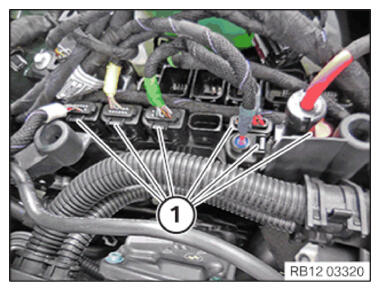

- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
Follow-up work
- Refer to INSTALLING HEAT MANAGEMENT MODULE .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE CLEAN AIR PIPE AND THE RESONATOR .
- Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
- Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
- Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
- Refer to INSTALLING THE TENSION STRUT ON THE RIGHT SHOCK TOWER .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
