Installing front wheel arch trim
- Only for G05/G18/F95:
Check
- Check the clips (2) for damage and replace if necessary.
Observe the sealing ring, it must not be missing or damaged.

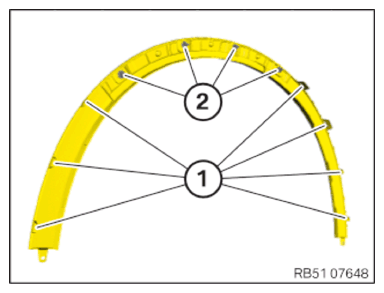

- Check detents (1) for damage.
Result
» The locks (1) of the wheel arch trim are damaged.
Measure
- Replace wheel arch trim.

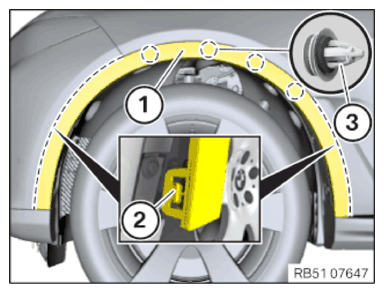

- Install wheel arch trim (1) and lock on the clips (3) and the detentes (2).
- Only for G06/G07:
Check
- Check the clips (2) for damage and replace if necessary.
Observe the sealing ring, it must not be missing or damaged.
- Check detents (1) for damage.
Result
» The locks (1) of the wheel arch trim are damaged.
Measure
- Replace wheel arch trim.
- Install wheel arch trim (1) and lock on the clips (3) and the detentes (2).
