Remove right luggage compartment wheel arch trim panel

Preliminary work

• Refer to REMOVING THE STORAGE SHELF .
• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE COVER FOR THE SIDE MEMBER ON THE RIGHT .
• Refer to REMOVING BATTERY COVER .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING THE COVER OF THE SEAT BELT FINISHER STRIP ON RIGHT .
• Refer to REMOVING THE RIGHT D-PILLAR TRIM PANEL .
• Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .

Remove luggage compartment wheel arch trim panel

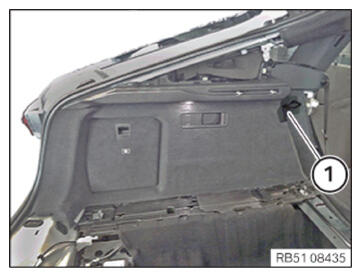

• Unclip the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

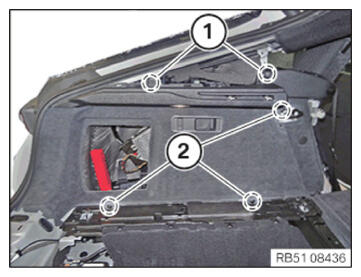

• Loosen screws (1).
• Loosen the expanding rivet (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

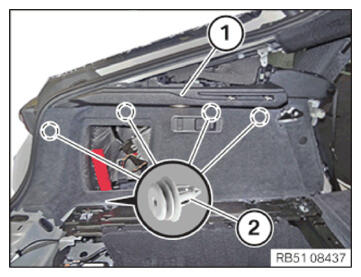

• Undo the luggage compartment wheel arch trim panel (1) at the clips (2) and guide out.

  Courtesy of BMW OF NORTH AMERICA, INC.

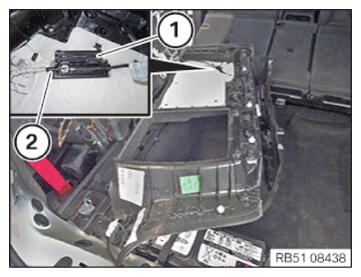

• Open flap and (1) detach the Bowden cable (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
