Remove luggage compartment floor covering

Precondition

• Rear seat bench is folded.

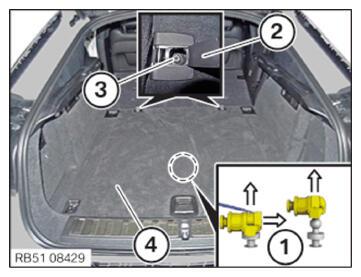

• Unclip the ball head of the gas pressure spring in the area (1) from below.
• Open the cover caps (2).
• Loosen screws (3).
• If necessary disconnect existing plug connection.
• Remove the luggage compartment floor covering (4) from the vehicle.

  Courtesy of BMW OF NORTH AMERICA, INC.
