Installing the center ventilation grille with integrated air conditioning control panel

Attach the ventilation grille (2) with the integrated air conditioning control panel at the decorative strip (3) and position it correctly.
Engage the detents (1) onto the ventilation grille (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

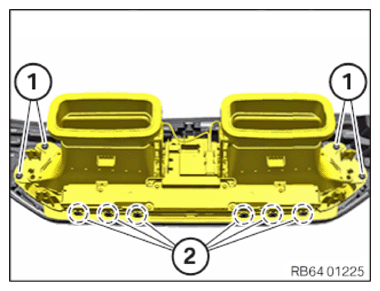

Engage the detents (2) .

Tighten down screws (1) .

TIGHTENING TORQUES SPECIFICATION

Ventilation grille to decorative strip/instrument panel
Screw	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
