Remove automatic transmission (all-wheel drive vehicle) (GA8HP51Z)

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DEACTIVATING THE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE STIFFENING PLATE .
• Refer to REMOVING REAR UNDERBODY PROTECTION .
• Refer to REMOVING THE ACOUSTIC COVER OF THE OIL SUMP .
• Refer to REMOVING STARTER MOTOR .
• Refer to REMOVING THE RIGHT REAR TORSION STRUT WHERE REQUIRED .
• Refer to REMOVING THE LEFT AND RIGHT REAR DIFFUSER .
• Refer to REMOVING EXHAUST SYSTEM .
• Refer to REMOVING THE HEAT SHIELDS .
• Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
• Refer to REMOVING THE RETAINING PLATES .
• Refer to PARTIALLY LOOSENING THE PROP SHAFT .

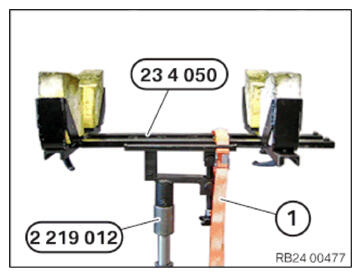

• Support the transmission using special tools  0 495 498 (23 4 050) and 2 219 012.
• Secure the transmission with a tensioning strap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

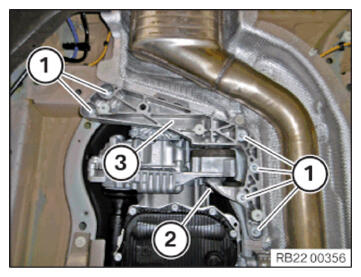

• Loosen screws (1).
• Loosen screw (2).
• Remove the transmission cross member (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

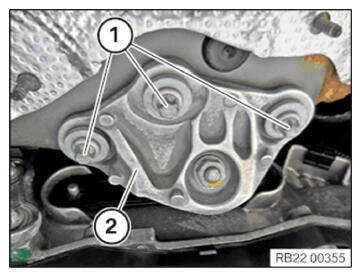

• Version A:

  Unscrew the bolts (1) on the transmission bearing support (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

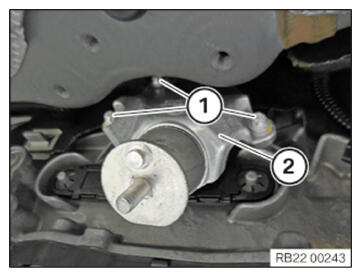

• Version B:

  Unscrew the bolts (1) on the transmission bearing support (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

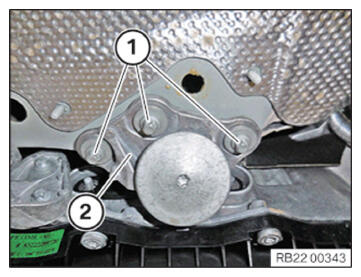

• Loosen screws (1).
• Remove transmission mounting bracket (2) on the right transmission side.

  Courtesy of BMW OF NORTH AMERICA, INC.

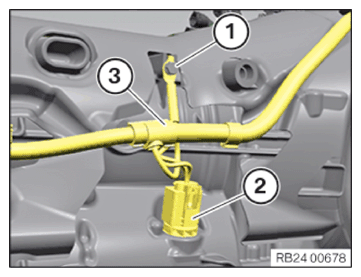

• Unlock plug connection (2) and disconnect.
• Loosen screw (1).
• Guide out wiring harness section (3) of the supply module and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

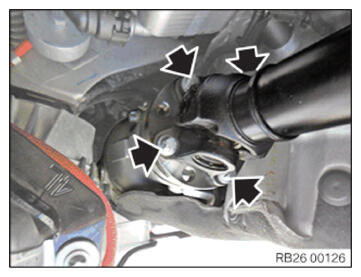

• Remove screws (arrows).
• Secure the propeller shaft on the transmission with a strap.

  Courtesy of BMW OF NORTH AMERICA, INC.

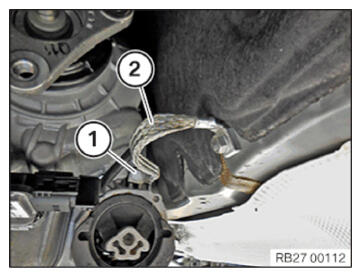

• Unscrew the bolt (1) and disconnect the ground strap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

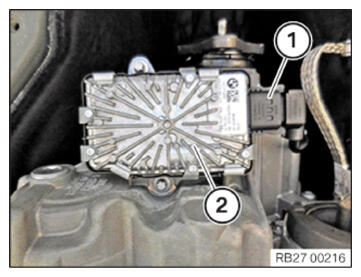

• Unlock and disconnect the plug connection (1) from the transfer box control unit (longitudinal torque distribution) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

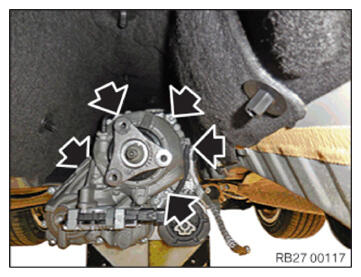

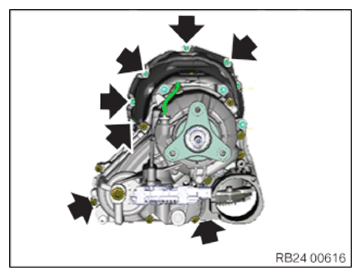

• Unscrew the screw connection (arrows) of the transfer box.
• Carefully pull off the transfer case with the front drive shaft.

  It is imperative to prevent damage to the surface coating!

  Courtesy of BMW OF NORTH AMERICA, INC.

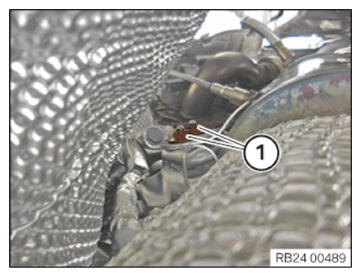

• Loosen nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

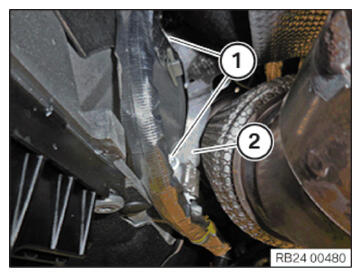

• Loosen screws (1).
• Remove the exhaust bracket (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

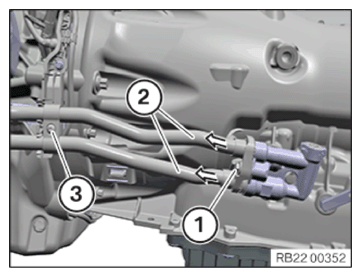

• Loosen screw (1).
• Loosen screw (3).
• Disconnect hydraulic lines (2) to transmission oil cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

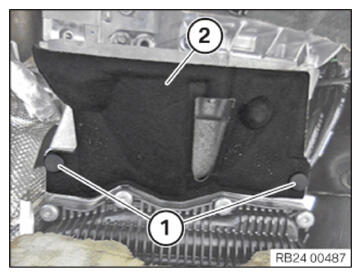

• Pull the expanding rivet (1) off.
• Remove the acoustic cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

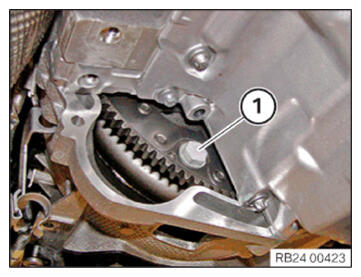

• Turn the engine with the special tool  0 493 380 (11 6 480) on the vibration damper in the direction of  rotation until the screw (1) becomes visible in the recess.
• Release all 6 screws (1) on the torque converter.

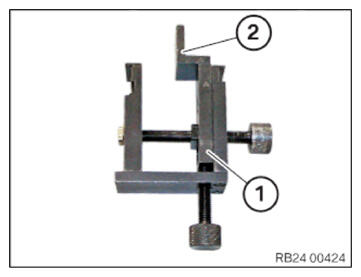

• Prepare special tool 0 494 478 (24 4 161) (1) with the shaped part 0 494 965 (24 4 165) (2) as depicted.

  Courtesy of BMW OF NORTH AMERICA, INC.

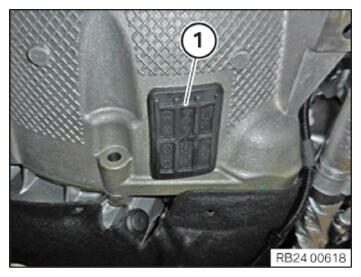

• Remove sealing cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

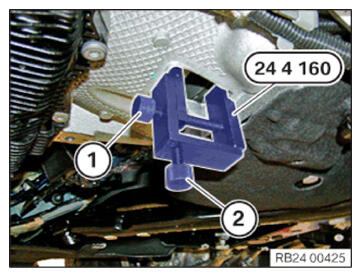

• Insert the special tool 0 494 451 (24 4 160) in the recess of the transmission housing and lightly fix it with the screw (1).
• Screw the bolt (2) in to the stop.
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Notes on mechatronics are a fundamental requirement for these repair instructions and must be complied with at all times.

  Courtesy of BMW OF NORTH AMERICA, INC.

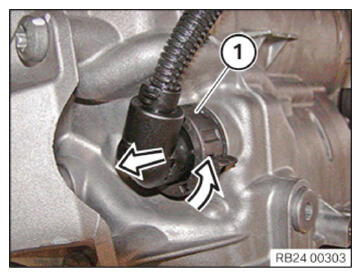

• Unlock and detach connector (1) by turning in arrow direction.
• Do not touch pins.
• Loosen all cable clips.

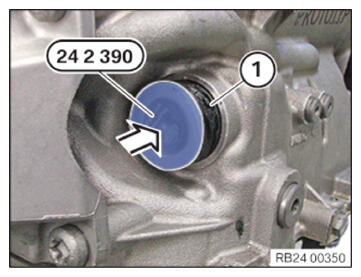

• Insert the special tool 0 494 213 (24 2 390) in arrow direction in the sealing sleeve (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  If possible, use special tool 5A0C 1B9  to limit the tilting movement of the engine when removing the transmission.
  Do not support in the area of the oil filter, oil drain plug or the oil level sensor!

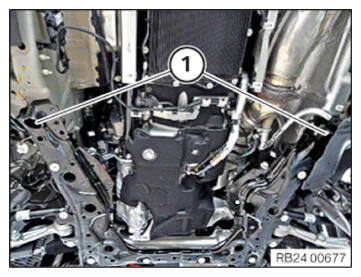

• Release the screws (1) on the front axle support.

  Courtesy of BMW OF NORTH AMERICA, INC.

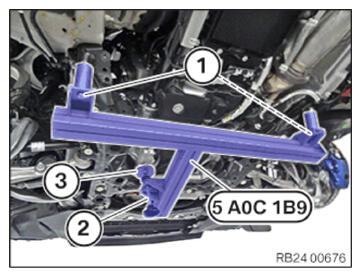

• Align and install the special tool 5 A0C 1B9  on the front axle support.
• Hand-tighten the screws (1).
• Turn the knurled screw (2) until the plate (3) is in contact.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Support engine.
• Remove screws (arrows).
• Remove transmission.

  Courtesy of BMW OF NORTH AMERICA, INC.
