Release universal joint on steering gear

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

NOTE: RISK OF DAMAGE
Damage to steering column switch cluster (SZL).
The steering column switch cluster (SZL) or the coil spring cassette can be damaged by twisting the steering wheel if the lower steering shaft (or the universal joint) is separated from the steering gear or the steering column.

After separating the lower steering shaft (or the universal joint) from the steering gear or from the steering column, secure the steering wheel against twisting.

Preliminary work

Refer to PARTIALLY REMOVING THE FRONT WHEEL ARCH TRIM FROM THE DOOR SILL .
Refer to REMOVING FRONT LEFT WHEEL .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .

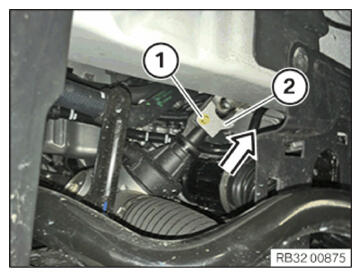

Loosen screw (1).
Detach the universal joint (2) from the steering gear in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
