Installing the holder for the DME control unit on the left

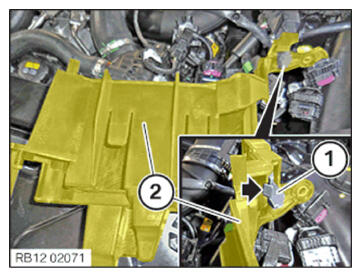

• Position the holder (2) for the DME control unit.
• Insert and install the holder (1).

  The lock (arrow) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

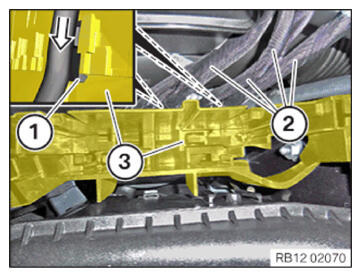

• Insert and install the holder (3) for the DME control unit.
• Connect the wiring harness section (2) to the holder (3) in the arrow direction and lock.

  The locks (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

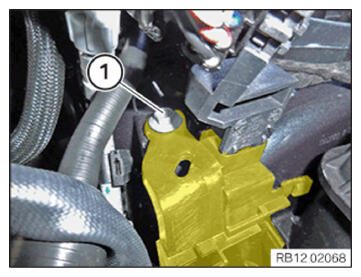

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Control unit holder
  Hexagon screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

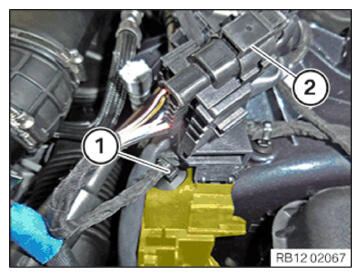

• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

• Secure the clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DME CONTROL UNIT OF CYLINDERS 5 TO 8 .
• Refer to INSTALLING COVER FOR THE LEFT DME CONTROL UNIT .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
